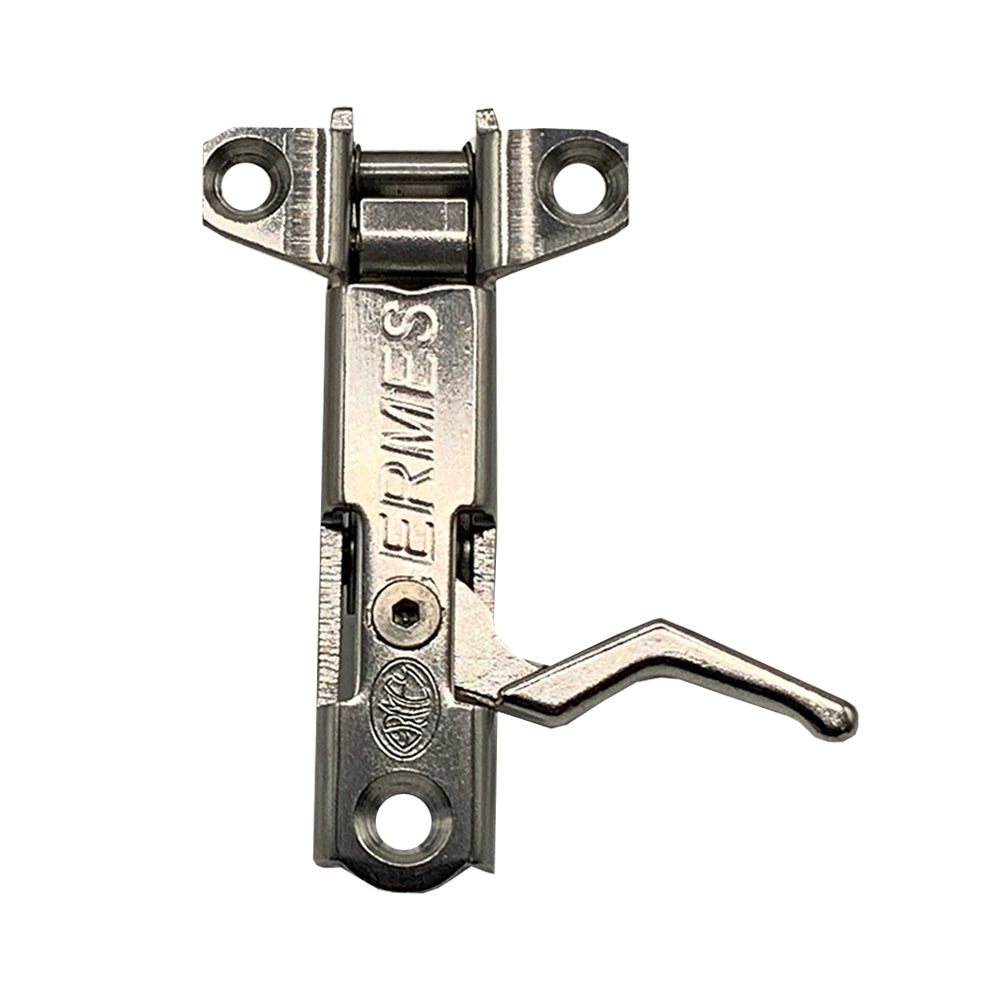

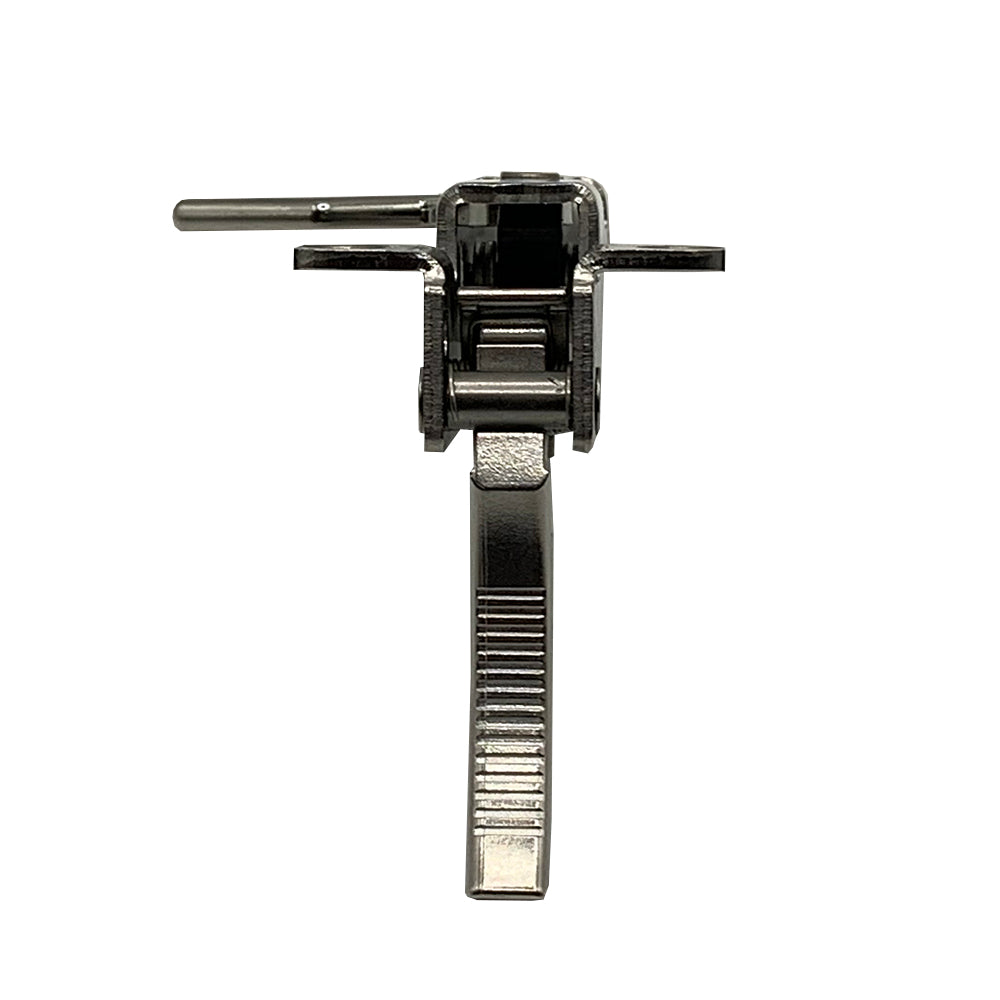

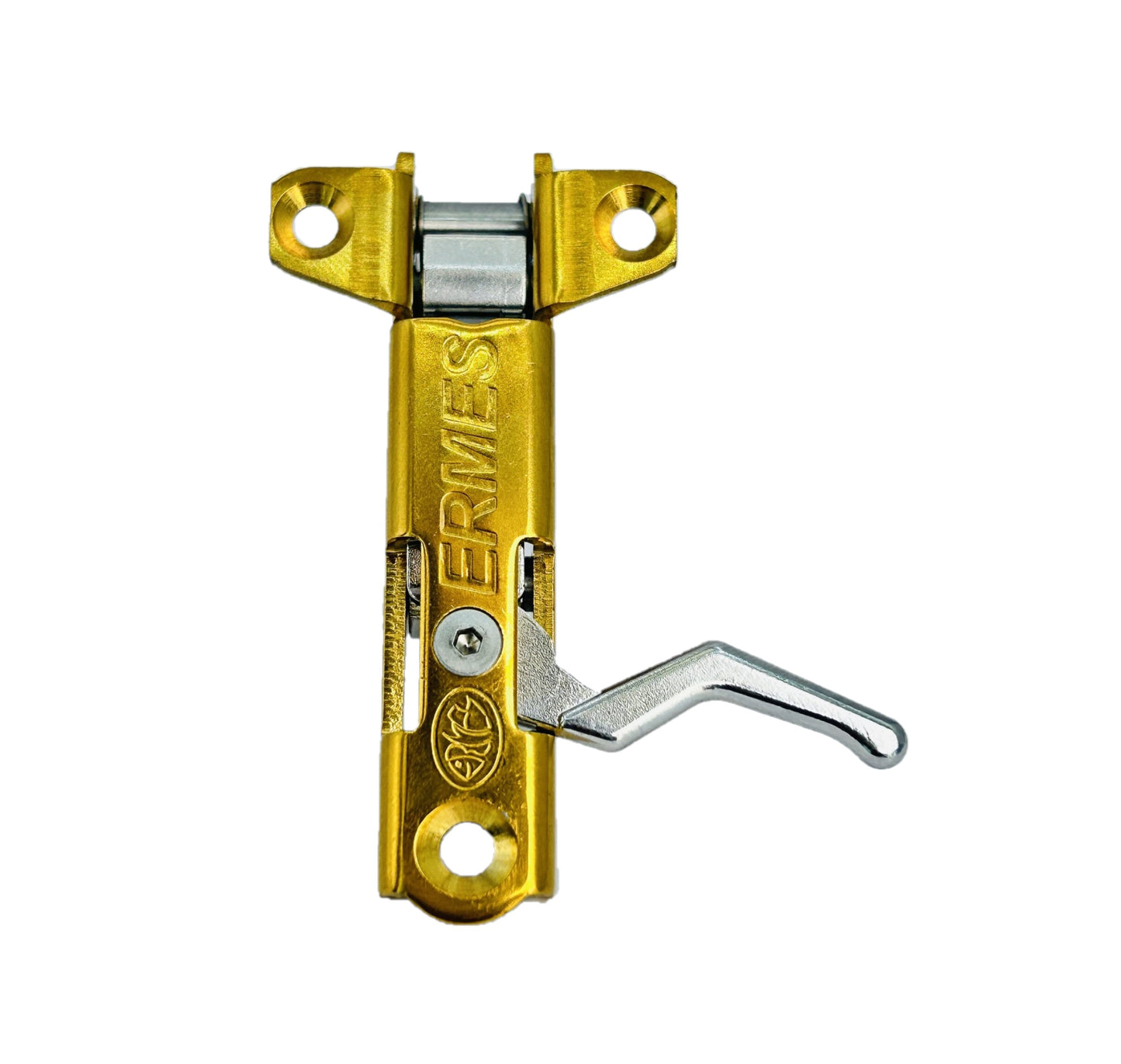

ERMES FUTURE DOUBLE ROLLER TRIGGER MECH

• Patented dual roller system.
• The box is obtained from a single sheet of metal using a system we invented to avoid welds and create 3 anchor points.
• The roller in contact with the shaft is floating, eliminating friction.
• The roller in contact with the trigger completely eliminates friction during the shot.
• The trigger does not harden during the release.
• Smooth shaft release.
• Primarily constructed from AISI 316 stainless steel.
• Manufactured using 3D metal injection molding technology.
• The trigger is made from our specially formulated super-resistant alloy with a hardness of 55HRC.
• The shaft insertion roller is made from 17-4ph and is wear-resistant.
• The line release is rounded; it neither consumes nor damages the line.
• The opening angle of the line release is 65 degrees.
• Tested with a load of 550 kg.
• Weight: 76 grams.

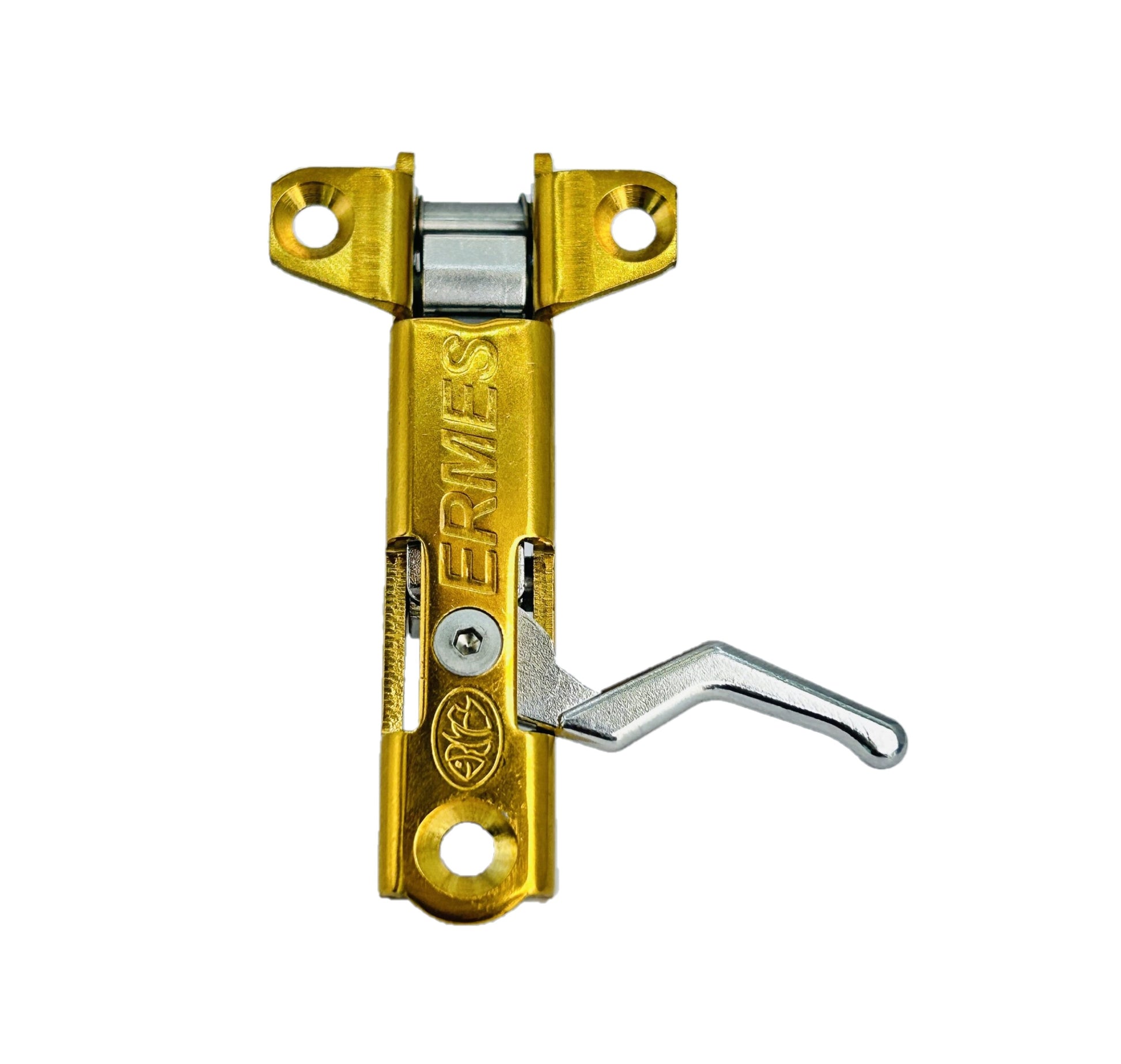

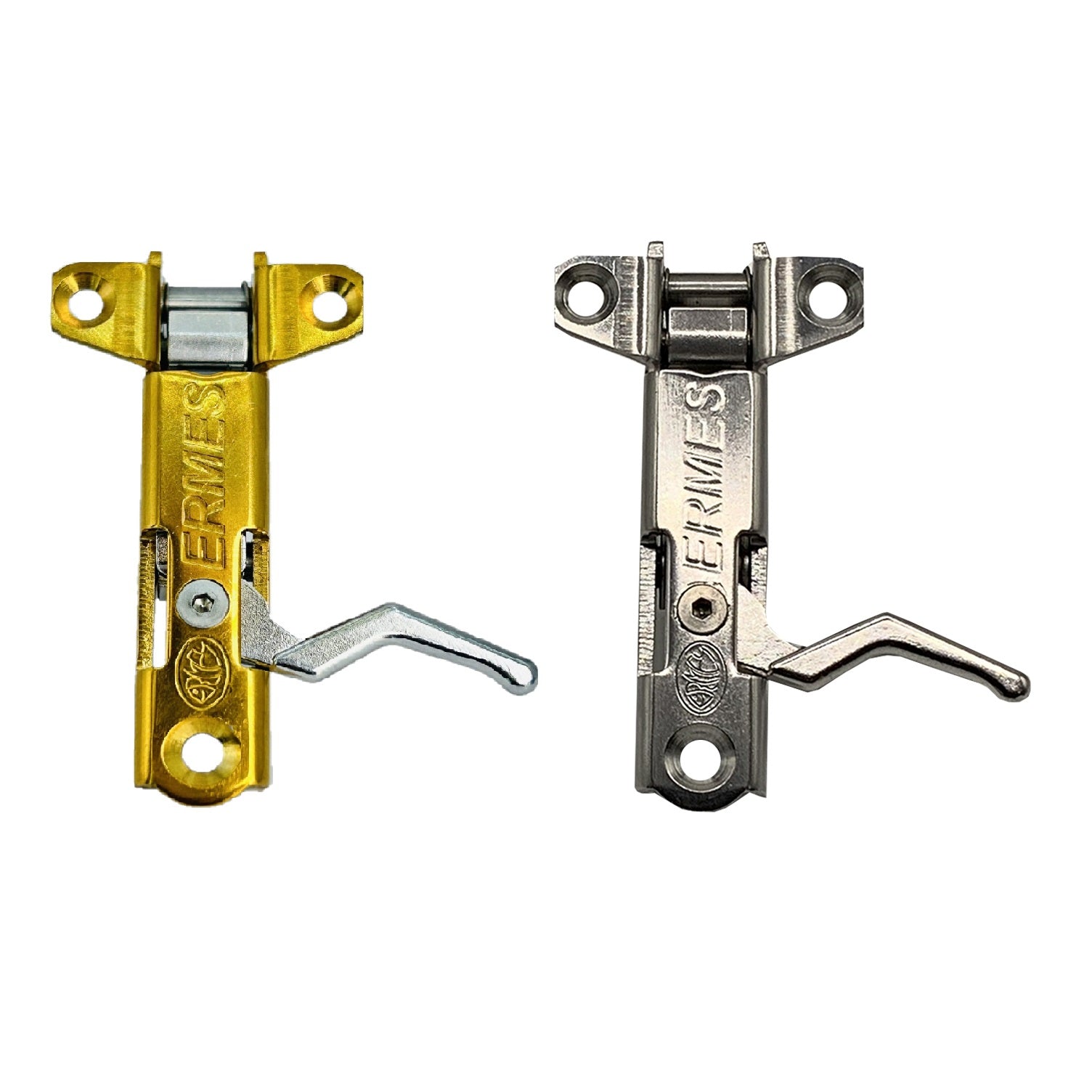

• Available upon request in gold color.
• Same dimensions and features as the Back model.
• The box is folded with a system that avoids welding in the wings for screw fixation, with the addition of a third screw in the back of the box.
